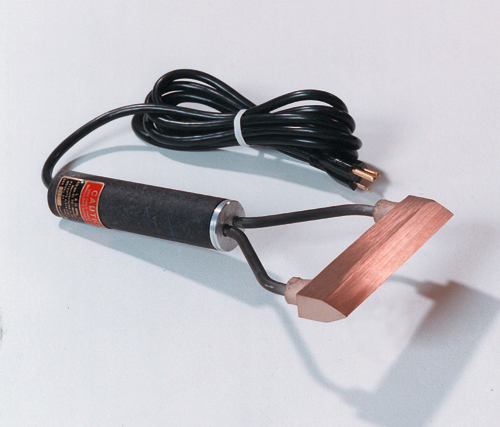

Hot Knife
Allows for easy removal of twine buildup on bale feeders. Comes in a 6" length and is 110 volts electrically heated.
| Hot Knife | $102.00 |

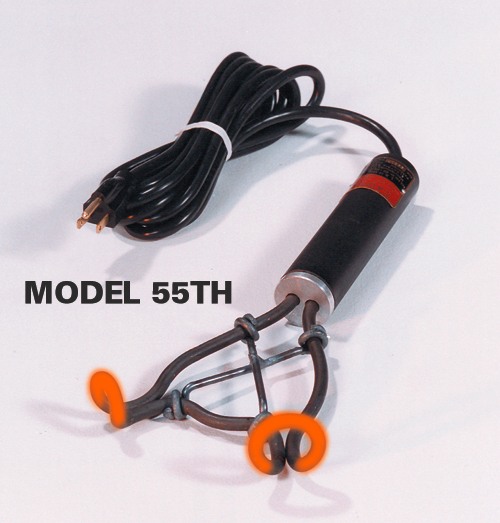

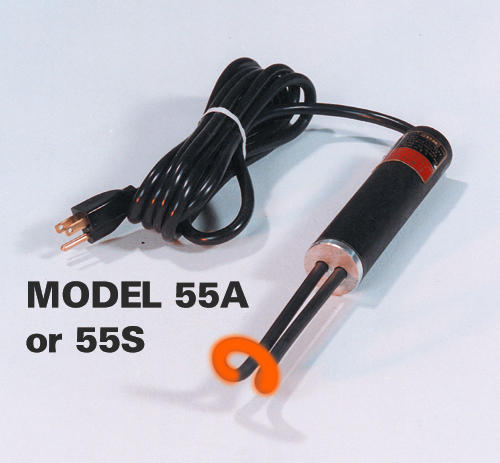

Dehorners
Decrease injury in your cattle herd by dehorning when they are young. This is accomplished quickly and simply with an L & H Electric Dehorner. Place the dehorner over the horn and rotate to make certain the high temperature is applied to all horn cells at the base of the horn. In four to six weeks the horn button will drop off leaving a smooth, well healed area. No loss of blood or severe shock during or after dehorning. Only a few seconds are required for the entire operation and can be done safely any month of the year. Operates on 110 volts, AC or DC.
Cast Bronze Dehorners Electric Searing Irons Fire Heated Dehorners

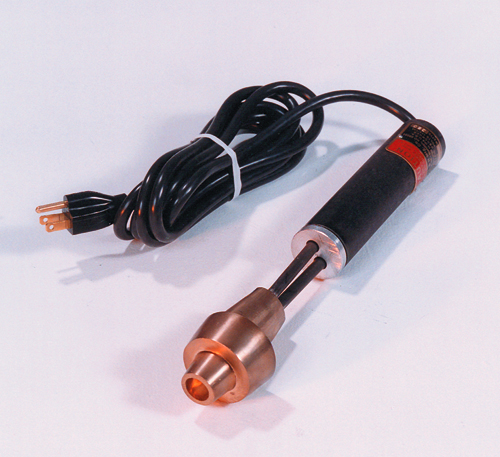

Cast Bronze DehornersPreferred by veterinarians and made of extra hard metal for dehorning small calves and goats, 5/8" I.D. hole. Operates on 100 volts, AC or DC.
Other sizes available upon request Grip Handle Any Model, additional $9.00 Factory Installation Only | ||

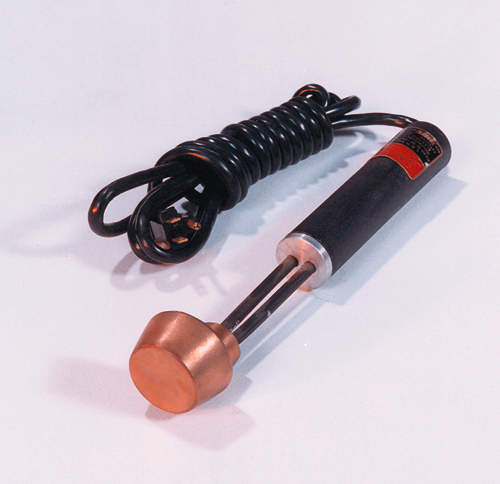

Electric Searing IronsThis unit is cast of extra hard aluminum bronze for lasting durability and designed for searing the blood vessels after the horn is removed to prevent bleeding and infection. Extra hot heating element. 1 3/4" flat face. Operates on 110 volts, AC or DC.
Other sizes available upon request Grip Handle Any Model, additional $9.00 Factory Installation Only | ||

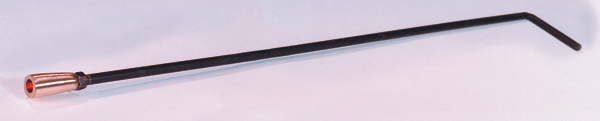

Fire Heated DehornersUnit is equipped with a 1/2" steel handle with the dehorning end made of extra hard aluminum bronze. To accommodate various size horns these are available in 5/8", 3/4", 7/8", 1" and 1 1/4" I.D. holes. Handle available in 24" or 36" length. Specify handle length and hole size of dehorner.
|
Brand Heater
Made of heavy gauge steel. The unique design of the burner allows all the irons to heat evenly without regards to positioning of the irons in the heater. The removable legs allow for easy transportation and can be used from the back of a pickup without the legs. Attaches to standard propane tank, not included. Available in 30" and 15" lengths.
| Model 15H | $ 250.00 |
| Model 30H | $ 270.00 |

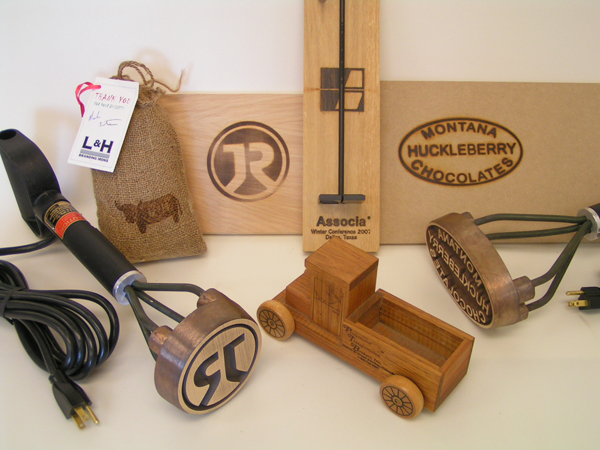

Specialty Branders

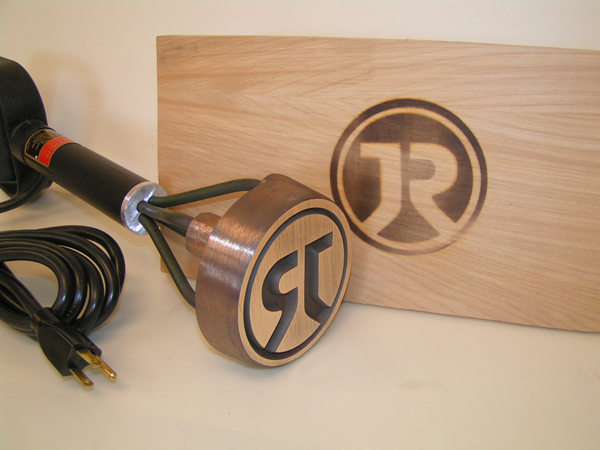

With L&H's new manufacturing processes we are now able to reproduce your special logos and wordings into your own personalized brand. Excellent for branding wood, plastics, leather, steaks - anything that burns.
With L&H's new manufacturing processes we are now able to reproduce your special logos and wordings into your own personalized brand. Excellent for branding wood, plastics, leather, steaks - anything that burns. Create your own personalized brands
Company logos can be fashioned into high quality, long lasting corporate gifts.
Call or Email For Quotes.
All Purpose Branders

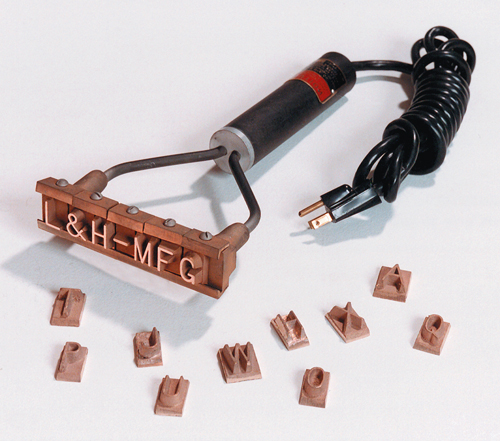

Will brand any object that burns: shovels, ladders, scaffolding, tires, etc. Seven 3/4" letters or eight 1/2" letters can be inserted. A simple and inexpensive way of identifying your equipment and reducing theft. Letters and numbers for the All Purpose Brander are stock items. Operates on 110 volts, AC or DC.
Brander | $ 125.00 |
Letters for All Purpose Brander | $ 4.75 |
1/2" or 3/4" letters | |
Set of Letters - A to Z (26) | $ 124.00 |
Set of Numerals - 0 to 9 (10) | $ 47.00 |

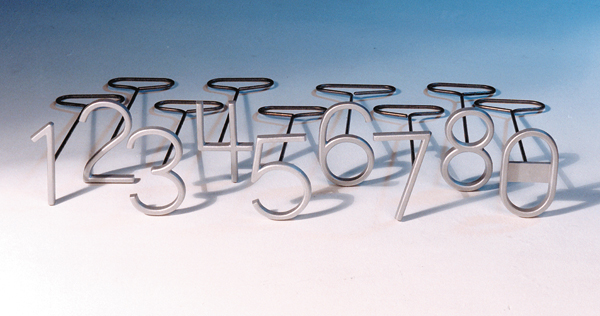

Paint Branding Irons are for marking sale animals and paint branding sheep. Made of high quality aluminum, light in weight.
| SET OF NUMERALS (0-8) | |
| 2 1/2" | $ 49.00 |
| 4" | $ 55.00 |
| Number sets consist of 9 irons, 0-8, the 6 is inverted to make the 9. | |
| STANDARD LETTERS OR NUMERALS | |
| 2 1/2" or 4" | $24.00 |

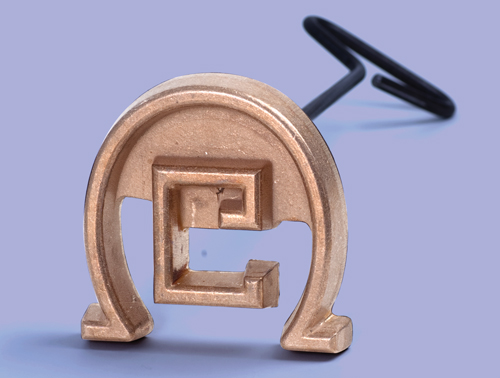

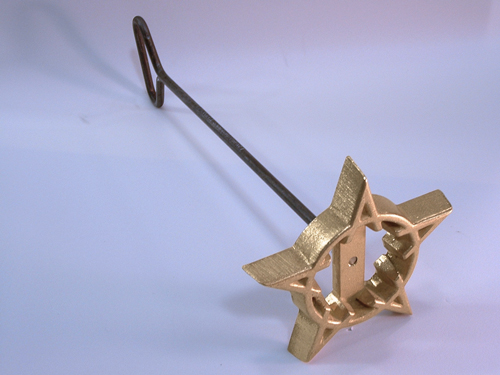

Freeze Branders

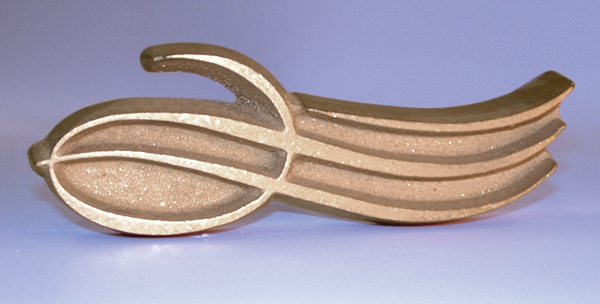

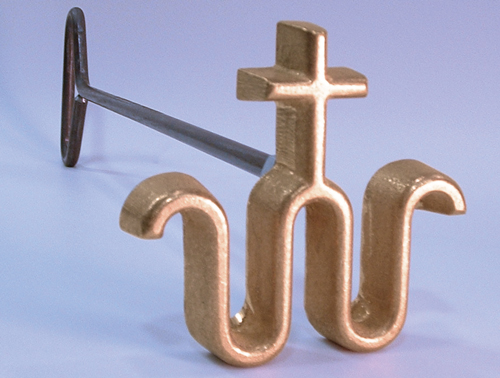

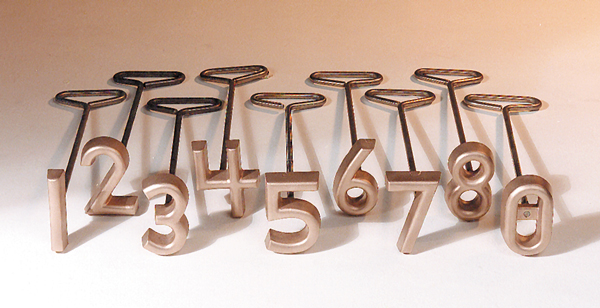

L & H makes the most complete line of freeze branders available. Standard sizes range from 1" to 6" in height. L & H also specializes in custom production of original & special design branders. You will find L & H Freeze Branders to be of the highest quality metal and superior workmanship.
These branding irons are ample in weight and have the temperature holding capacity to help you brand more livestock in less time and still aid you in producing a better brand. All special design freeze brands are normally shipped within 2 weeks from date order is received.
» View Freeze Brand Instructions
» View Catalog PDF
| SINGLE LETTER OR NUMERAL | |
| 1", 1 1/4", 1 1/2" or 1 3/4 | $ 32.00 |
| 2" or 2 1/2" | $ 38.00 |
| 3" or 3 1/2" x 3/8" or 9/16" Face | $ 42.00 |
| 4" x 3/8" or 9/16" Face | $ 45.00 |
| 5" or 6" Face | $ 47.00 |
| CUSTOM DESIGNS | |
| 1 or 2 Characters | $ 108.00 |
| 3 or 4 Characters | $ 128.00 |
| SET OF NUMERALS (0-8) | |
| 1", 1 1/4", 1 1/2" or 1 3/4 | $ 129.00 |
| 2" x 1/4" Face | $ 145.00 |
| 2 1/2" x 5/16" Face | $ 152.00 |
| 3" x 3/8" Face | $ 175.00 |
| 3" x 9/16" Face | $ 177.00 |
| 3 1/2" x 3/8" Face | $ 180.00 |
| 3 1/2" x 9/16" Face | $ 183.00 |
| 4" x 3/8" Face | $ 194.00 |
| 4" x 9/16" Face | $ 197.00 |
| 5" or 6" x 9/16" Face | $ 204.00 |
Number sets consist of 9 irons, 0-8, the 6 is inverted to make the 9.
| SET OF LETTERS (A-Z) | |
| 1", 1 1/4", 1 1/2" or 1 3/4 | $ 303.00 |
| 2" x 1/4" Face | $ 374.00 |
| 2 1/2" x 5/16" Face | $ 385.00 |
| 3" x 3/8" Face | $ 450.00 |
| 3" x 9/16" Face | $ 454.00 |
| 3 1/2" x 3/8" Face | $ 458.00 |
| 3 1/2" x 9/16" Face | $ 464.00 |
| 4" x 3/8" Face | $ 483.00 |
| 4" x 9/16" Face | $ 488.00 |
| 5" or 6" x 9/16" Face | $ 531.00 |
Freeze Branding
Branding times vary according to the type of metal in the irons (all times shown here are for L & H brass freeze branding irons) and the age, skin thickness and color of the animal. Branders should calibrate their freeze branding irons by branding the recommended times and keeping accurate records of times and results.
| Animal | Coolant | Application Time |
| Colt | Liquid Nitrogen | 6-12 Seconds |
| Dry Ice & Alcohol | 16-24 Seconds | |
| Horse | Liquid Nitrogen | 8-12 Seconds |
| Dry Ice & Alcohol | 20-24 Seconds | |
| Calf | Liquid Nitrogen | 21-24 Seconds |
| Dry Ice & Alcohol | 40-50 Seconds | |
| Cow | Liquid Nitrogen | 25-30 Seconds |
| Dry Ice & Alcohol | 50-60 Seconds |
Branding Procedure
Chill the irons in the desired coolant. Pour enough coolant into the container to adequately cover the heads of the irons by 1". The surface of the coolant will appear to boil when the irons are introduced into the coolant, when this boiling subsides the irons are as cool as the coolant will allow and are ready to use.
Restrain the animal with your desired method, squeeze chute or calf table for cattle and twitch or stock for horses, making sure the site to be branded is accessible. If the animal needs to be sedated consult your veterinarian.
Clean the brand site of foreign material. Clip the brand site as square as possible, particularly at the bottom, to aid in square placement of the brand. Throughly dry the brand site if the animal is sweating or is wet from the rain or washing.
Squirt room temperature alcohol over the brand site, thoroughly covering the entire area. This removes some skin oils and helps transfer cold from the iron head to the skin.
Immediately after the alcohol soak, quickly remove the appropriate iron from the container, align it properly and firmly press the iron squarely on the brand site. As the iron is pressed to the skin the stopwatch should be started. Hold the iron firmly, applying 35 to 45 pounds of steady pressure, with a slight rocking motion. When the appropriate time has elapsed on the stopwatch, the iron should be immediately removed from contact with the skin.

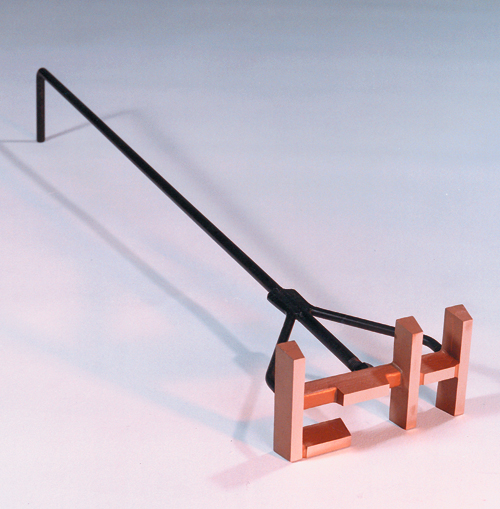

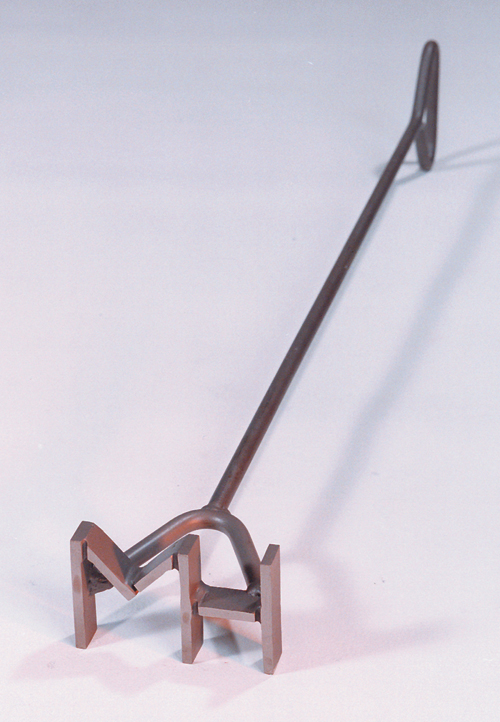

Fire Heated Branders
L & H Fire Heated Branding Irons are made of rust resistant non-corrosive copper alloy and have a 1/4" flat face. They produce a good clear brand because the unit is vented at intersecting points to prevent blotching. They are also equipped with a heavy-duty, one-half inch steel handle, thirty-two inches long. As copper alloy has a lower melting point than steel, caution should be used when heating these irons. Particular caution should be used when using propane branding iron heaters. These branders will not turn ash grey as steel irons, but will retain its natural dull copper color when hot. All special design Fire Heated Branders are normally shipped within 2 weeks from the date order is received.
| SET OF NUMERALS (0-8) | |
| 2" or 2 1/2" | $ 175.00 |
| 3" or 3 1/2" | $ 191.00 |
| 4" | $ 201.00 |
| 5" | $ 216.00 |
| 6" | $ 228.00 |
STANDARD LETTERS OR NUMERALS
Irons are considered standard design when the characters of the iron are standard block lettering, do not touch each other and are separated by some space.
| SINGLE CHARACTER (A,B,C & 1,2,3) | |
| 2" thru 6" | $ 48.00 |
| CUSTOM DESIGN | |
| 1 or 2 character | $ 109.00 |
| 3 or 4 character | $ 131.00 |

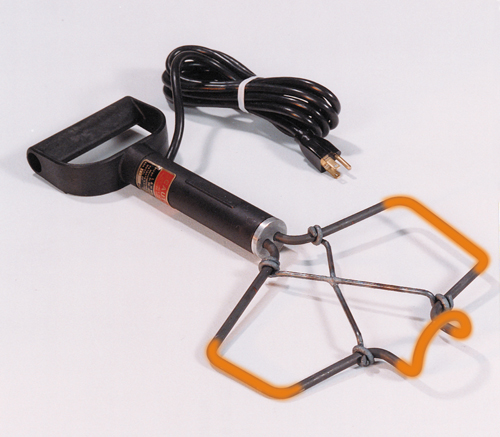

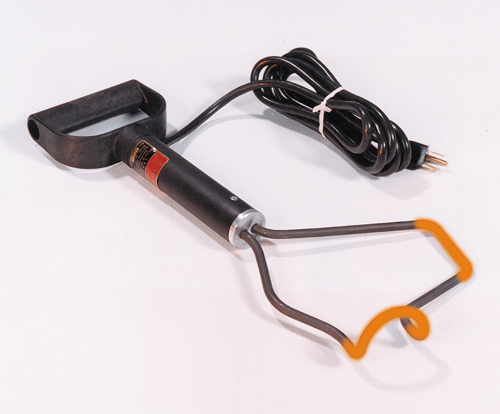

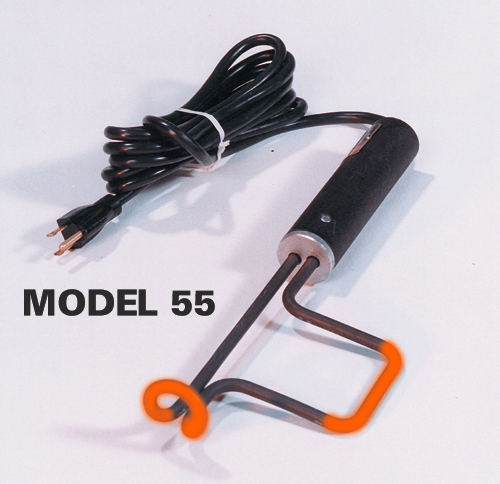

Electric Branders

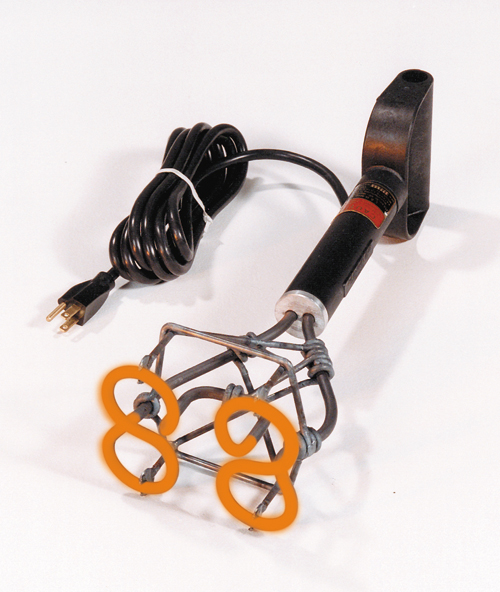

L & H revolutionized animal identification methods with the originally designed tubular type electric brander.L & H Manufacturing Company is recognized nationally as the leader in this field. L & H makes the most complete line of livestock branders with thousands of satisfied users all over the world. Reduce the chance of loss and theft of your livestock. Mark them permanently with an L & H Brander. All L & H Electric Branders are custom made to meet your exact specifications. Available in many designs of letters and numbers. FAST: Will heat to branding temperature in ninety seconds and maintains constant even heat for producing a good brand. No waiting time for brander to reheat. Merely leave plugged in as long as you are branding. SAFE: Eliminate open fires; decrease the chance of fire loss to farm and ranch structures. All L & H Electric Branders are equipped with a 10' three wire grounded cords for added safety. SIMPLE: Plugs into any 110 volt outlet, AC or DC, for fast, easy hookup. Brander is especially designed for a clear vision of the branding application DURABLE: L & H ELECTRIC BRANDERS are braced at all stress points with steel rods, keeping the heating element from bending or breaking. The brander is made of lasting, non-corrosive material and with ordinary use will give years of trouble free service.
ORDERING INSTRUCTIONS: Submit drawing of brand desired showing actual size and design when ordering and specify if letters are to be 2", 2 1/2", 3", 3 1/2", or 4" in height. Designs of branders cannot be changed after the brander is completed. ALL PRICES LISTED BELOW APPLY TO STANDARD 2", 2 1/2", 3", 3 1/2", or 4" LETTERS OR FIGURES. 2" & 2 1/2" electric branders are made with a thin line 3/16" face, 3" and above with 3/8". 3/8" Element
*Characters over 4" in height add $10.00 per iron

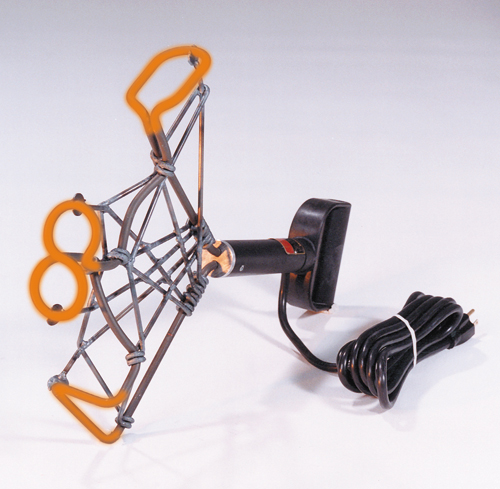

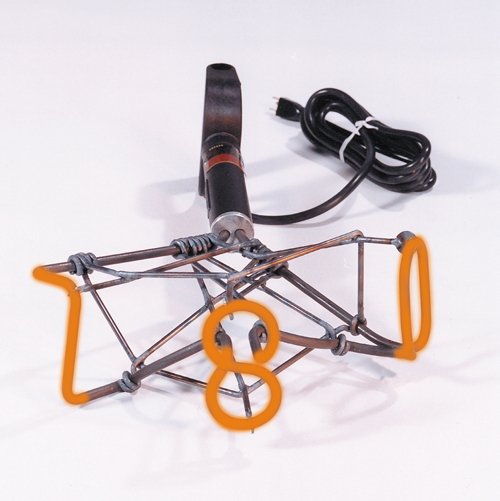

Number BrandersL & H Manufacturing Company, originator of the tubular electric brander, continues to lead the industry by being the first to develop a convenient and permanent way of numbering livestock for production testing. Because branding elicits a permanent mark, the L & H Number Set is in popular demand throughout the country. Universities, Extension Services, Livestock Associations and Cattlemen have been using these sets for many years with complete satisfaction. The L & H Number Set consists of three complete and individual irons. The first brander has the numbers one, two & three; the second has the numbers four, five & six; the third has the numbers seven, eight & zero. By inverting the six the number nine can be made. All numbers on the brander are hot at the same time and are offset so each can be applied separately. Only a few minutes of your time is needed to make a brand that will stay with the animal for a lifetime. Number sets are available with the numbers side by side or numbers one above the other in a vertical position.
| |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
3/16" Element
